For several years, I’ve been using the Cactus V5 wireless flash transceivers (or radio triggers, as they’re often called) for strobist photography. They are relatively low-cost and very reliable full-manual triggers that can trigger virtually any flash gun from just about any camera. Over the years I’ve gathered several different brands and types of flashes: two different Canon EX models (that support E-TTL II), two different Canon EZ models (from the analogue era, so no TTL on digital bodies), a Sigma EF (for Canon) and a Nikon SB-28 – whatever I could pick up for cheap second hand. So the V5’s versatility was very handy. They have some minor downsides (they don’t have a power save function, can be difficult to remove from a camera hot shoe, and it’s hard to see which channel is selected in dim circumstances), but they get the job done very well.
The downside with manual triggers of course is that one has to adjust all flash settings on the flashes themselves. That can be pretty cumbersome, especially when putting flashes inside softboxes or in hard-to-reach places. I thought of switching to E-TTL flashes or some other means to control the flash settings remotely, but was put off by the cost of the potential solutions I found. That’s when I heard that Cactus was developing a system that could potentially control the power settings of all the flash guns I owned, at a price that I could afford.
That system is the Cactus Wireless Flash Transceiver V6, or “V6” for short. The only thing that the flashes I own have in common is that they all support some form of TTL, but across different brands. The V6 promises to be able to control these flashes and to remotely set their power levels as well. Simultaneously. In different groups. With other cool features like TTL pass-through. Let’s test that out!
NB: this review is based on pre-production units — the hardware is final, but the firmware may change a little before the V6 hits the shops.
NB: I’ve been part of the beta test team for the V6, but am not paid by Cactus and in no way affiliated with them.
Features & Specifications
- Wireless manual power control of a list of current and previous Canon, Nikon, and Pentax flashes.
- Flash profile learning for analogue-TTL flashes.
- Full manipulation of power levels to 1/10, 1/3, 1/2 and 1EV steps.
- Lo Power mode fires the flash for extremely short lengths of time.
- Absolute Power Mode benchmarks the power output of different flash models to the same light intensity.
- TTL pass-through with Canon, Nikon, Olympus, Panasonic, Pentax, and Fujifilm via one single unit.
- Built-in optical trigger enables pre-flash triggering.
- Group control allows you to control up to four groups.
- Relay mode triggers the camera shutter and flash in sync.
- Delay timer is configurable from 1 millisecond to 10 seconds.
- Mini-USB port for optional power supply and firmware updates.
Technical specifications, from the manual:
- Working radio frequency: 2.4 GHz
- Number of channels: 16
- Number of groups: 4
- Support sync speed up to 1/1,000 second (subject to camera’s sync speed limitation)
- Maximum effective distance: 100 meters
- Operating temperature: -20°C to +50°C
- Camera voltage handling: up to 6V
- Flash voltage handling: up to 300V
- Dimensions: 72mm (L) x 72mm (W) x 42 mm (H)
- Weight: 68g
- Power input: Two AA batteries; mini USB 2.0, DC input 5V, 500mA~1A
- Estimated battery life (with 1000mAh batteries):
TX RX LCD Backlight Off 40 hours 21 hours LCD Backlight On 25 hours 17 hours
Unboxing & First Impressions

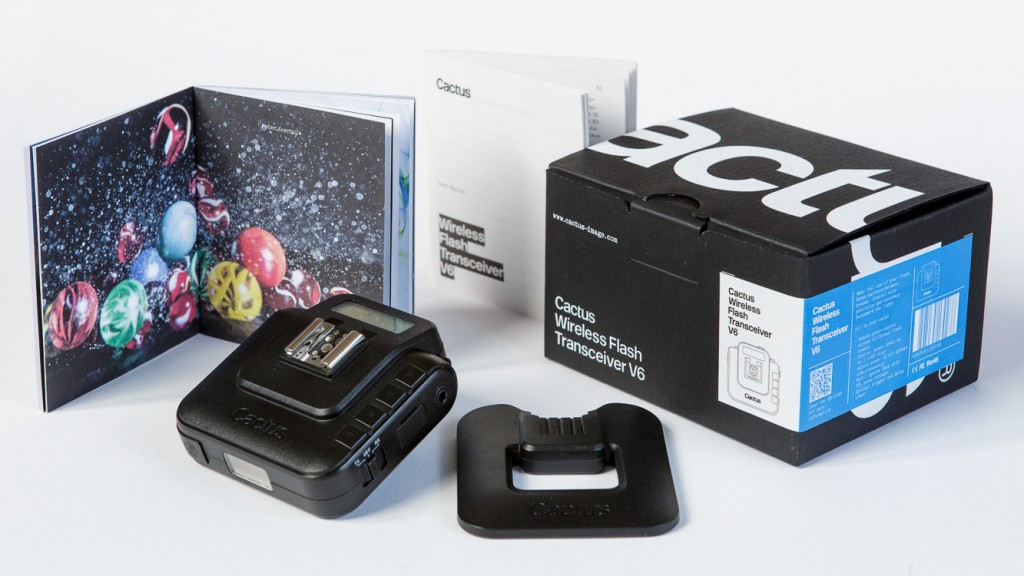

The matte cardboard box looks nice, with very distinct Cactus styling. It’s all cardboard, so Cactus have given some thought to the environment. In the box are an 80-page user manual, an inspirational booklet with photos taken by users of the V5 (including mine!), a flash stand and the V6 itself. The flash stand is very sturdy, much better than the rather flimsy one that came with the V5. It lacks a thread for a lightstand. No batteries or adapter cables are supplied – I still have the cables that came with the V5, so that’s not a problem.

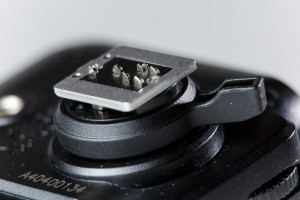

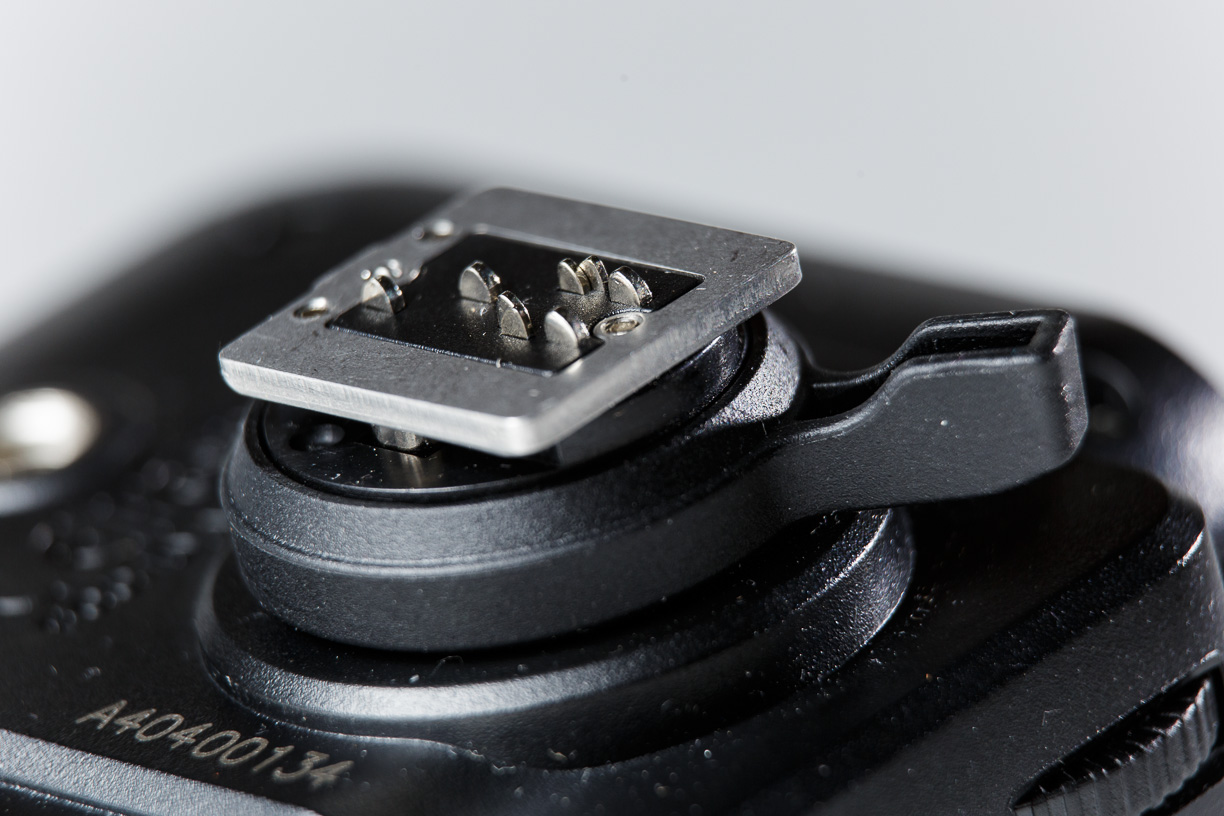

The first impression I get upon taking the V6 itself out of the box is that it’s quite big; it’s about as high and deep as the V5, but about 2cm wider. On-camera or under-flash this isn’t a problem, but they do take up a bit of space in the camera bag. They feel quite sturdy, especially with batteries in them. Not 580EXII-sturdy, but better than the V5, and I’ve never had any problems with the toughness of those. The square-ish, industrial-looking design looks nice and the controls appear to be well laid-out.

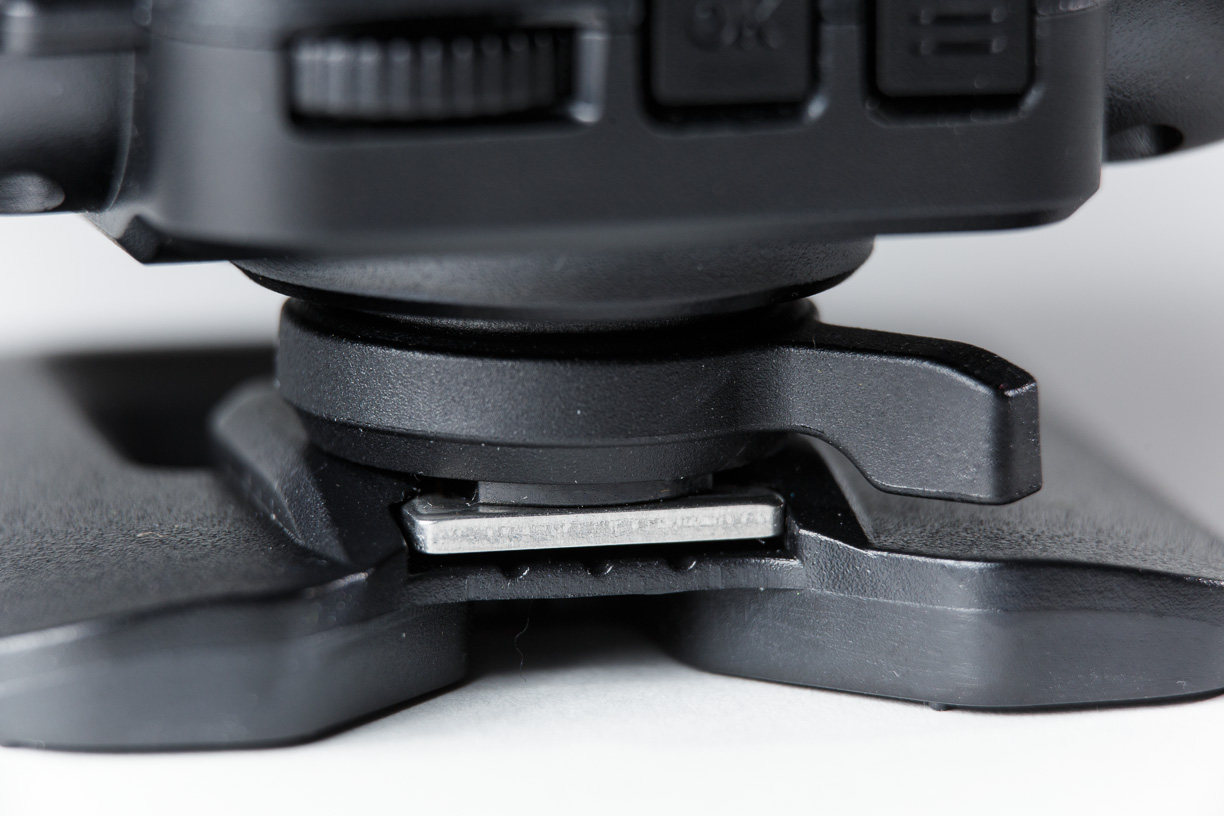

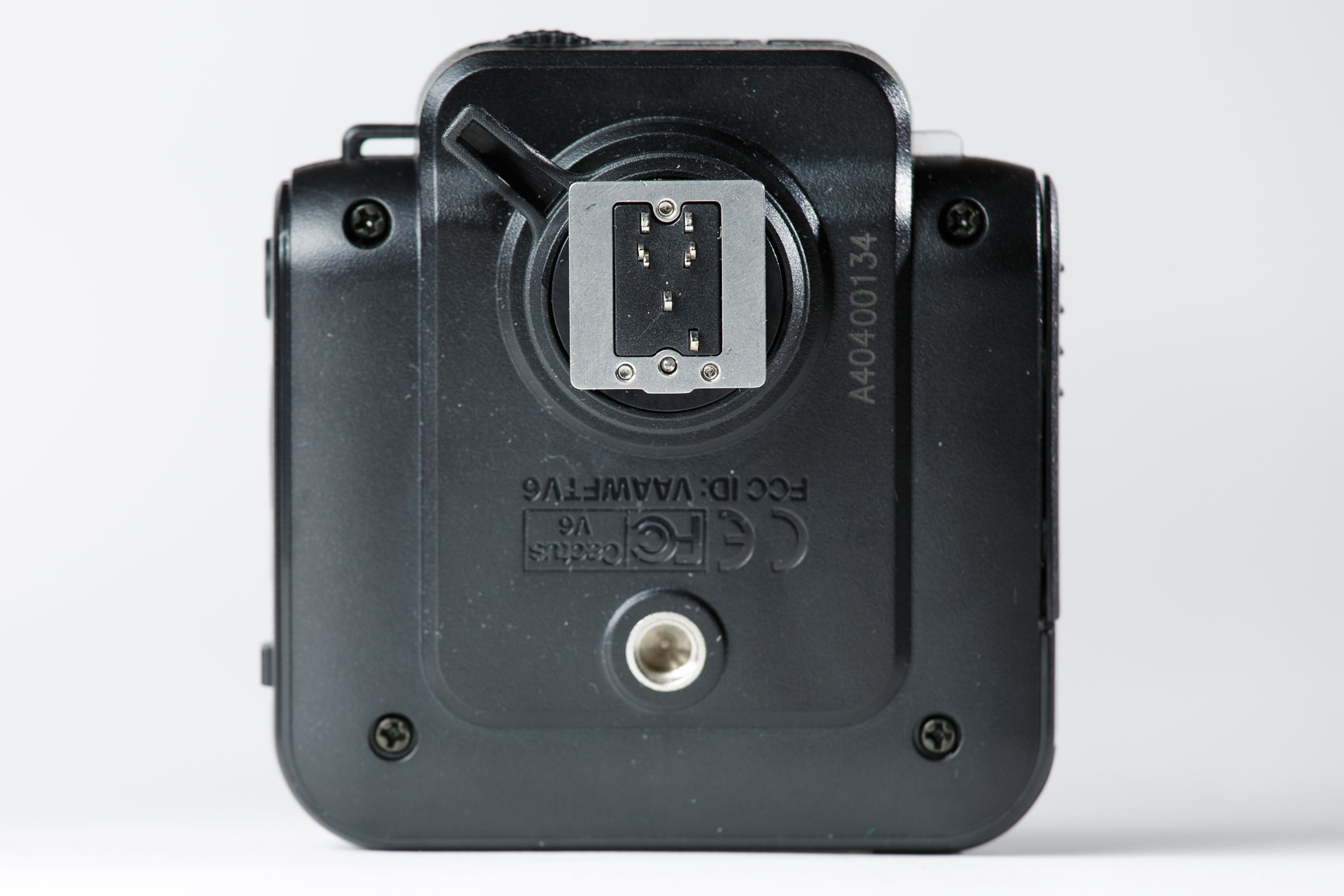

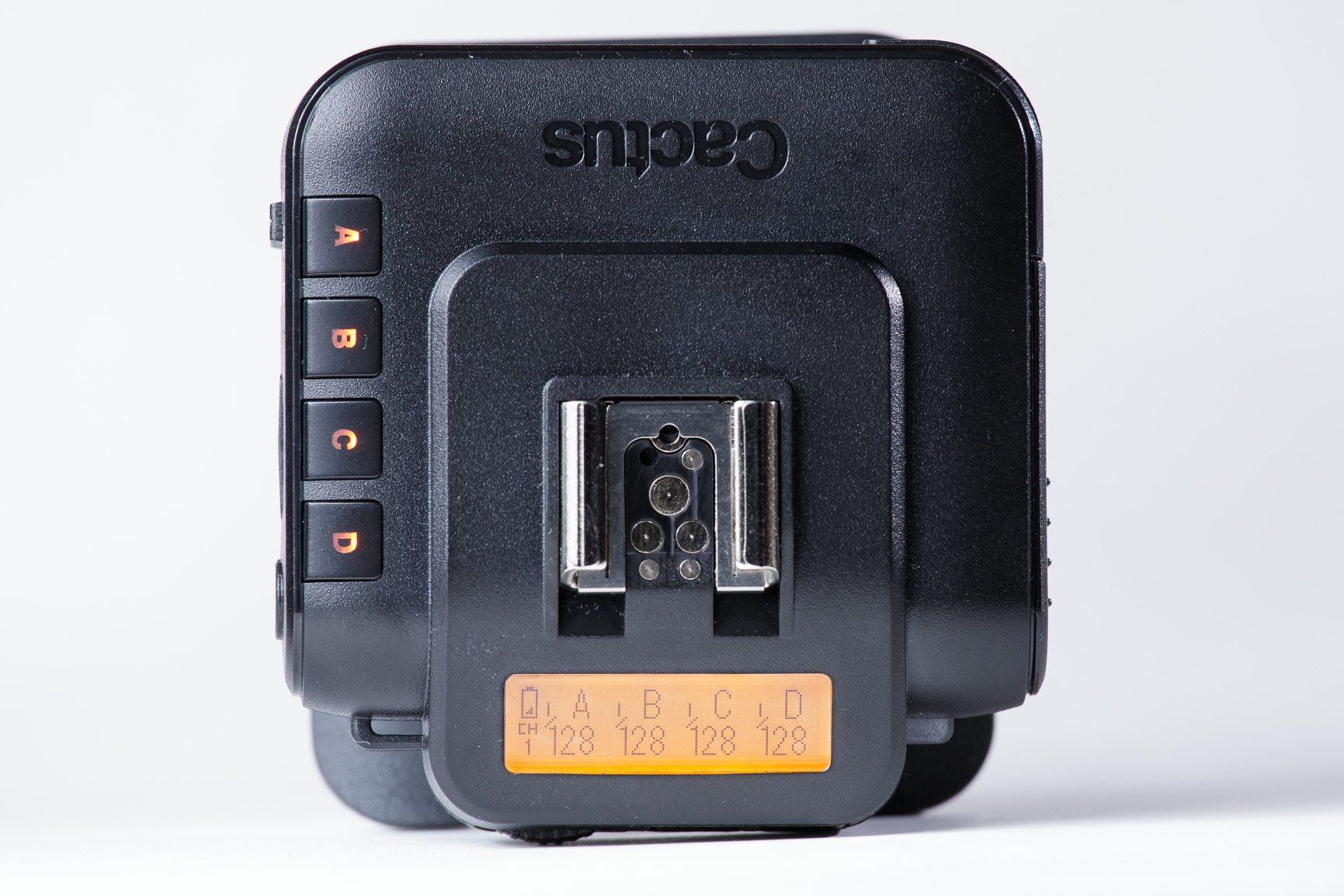

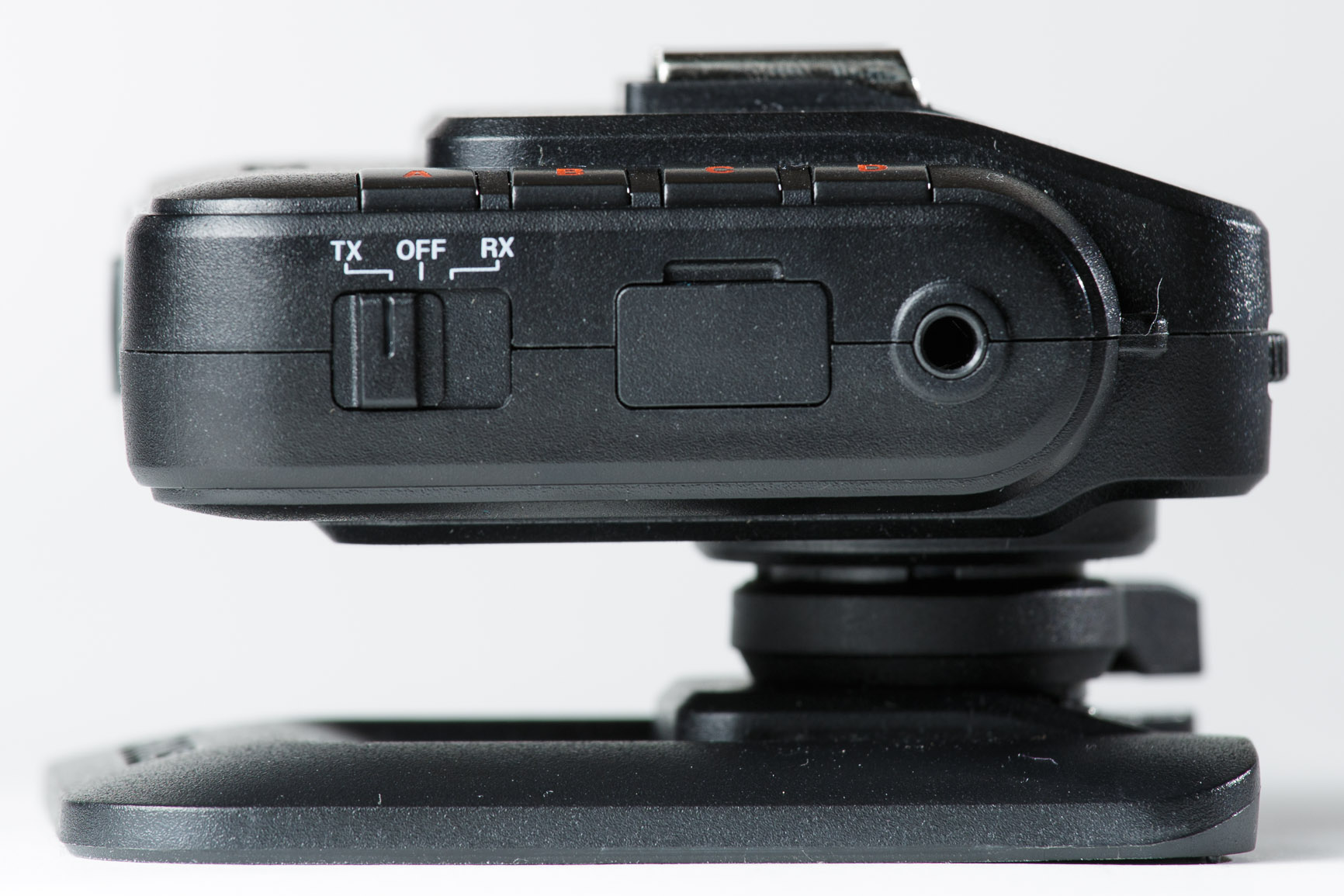

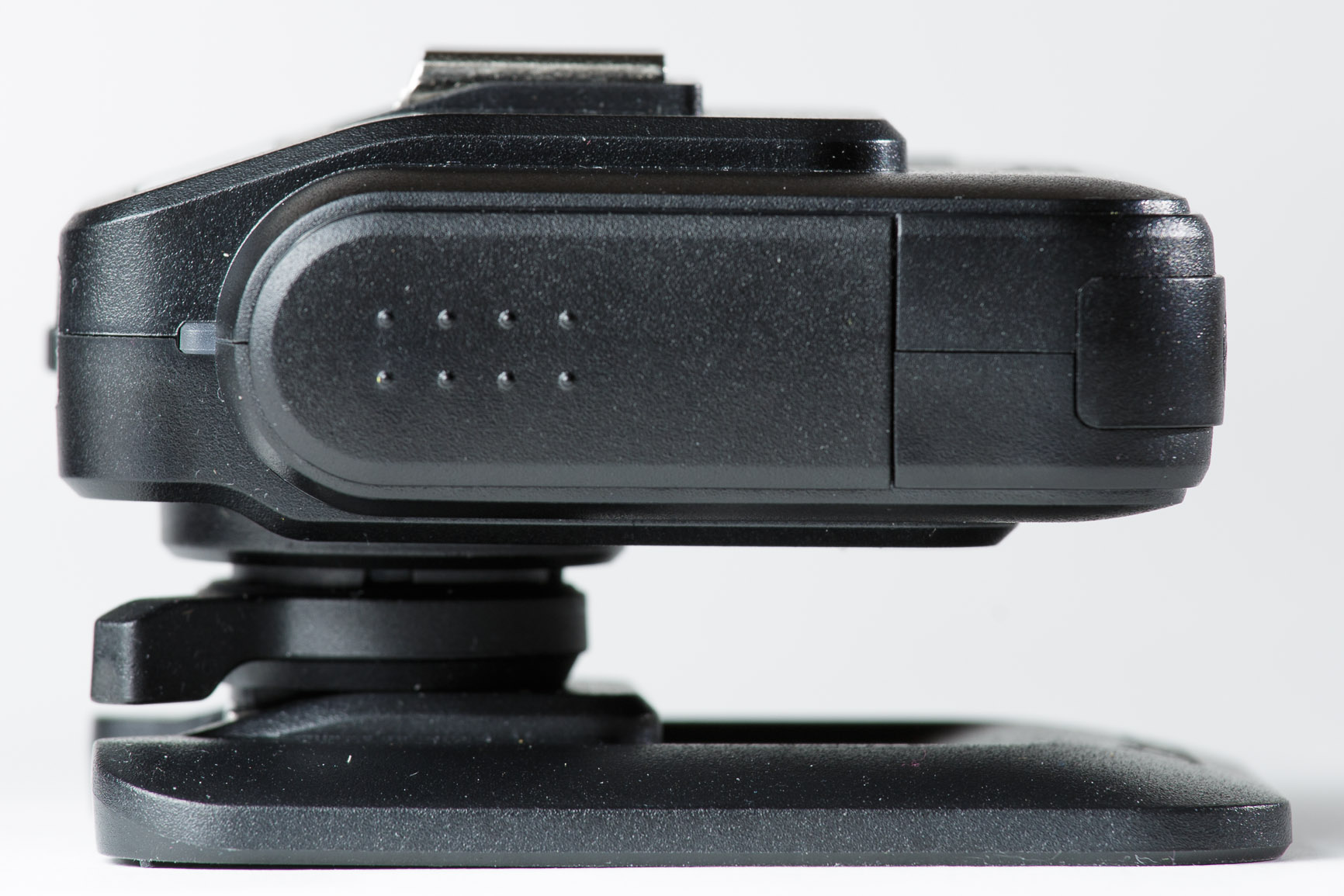

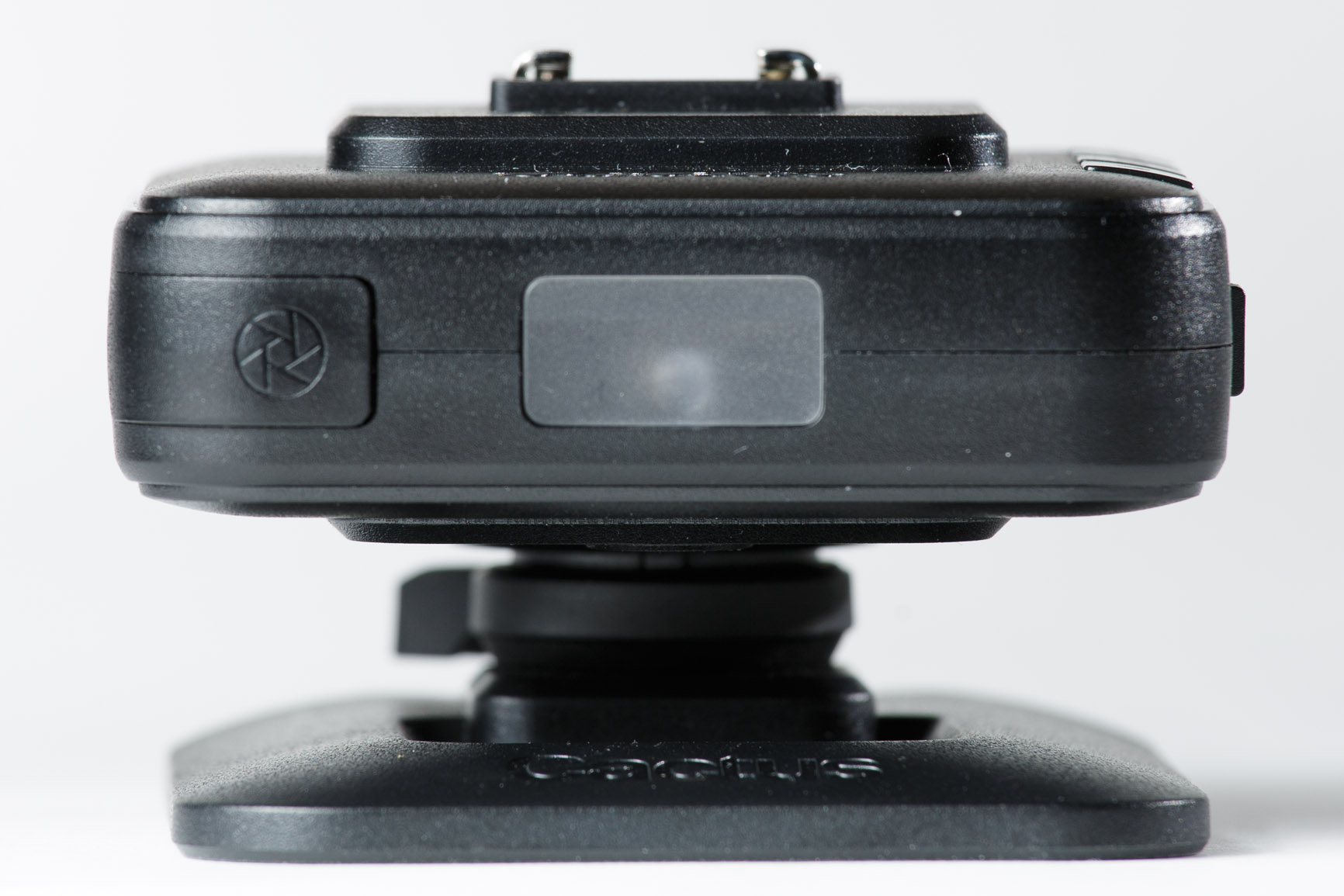

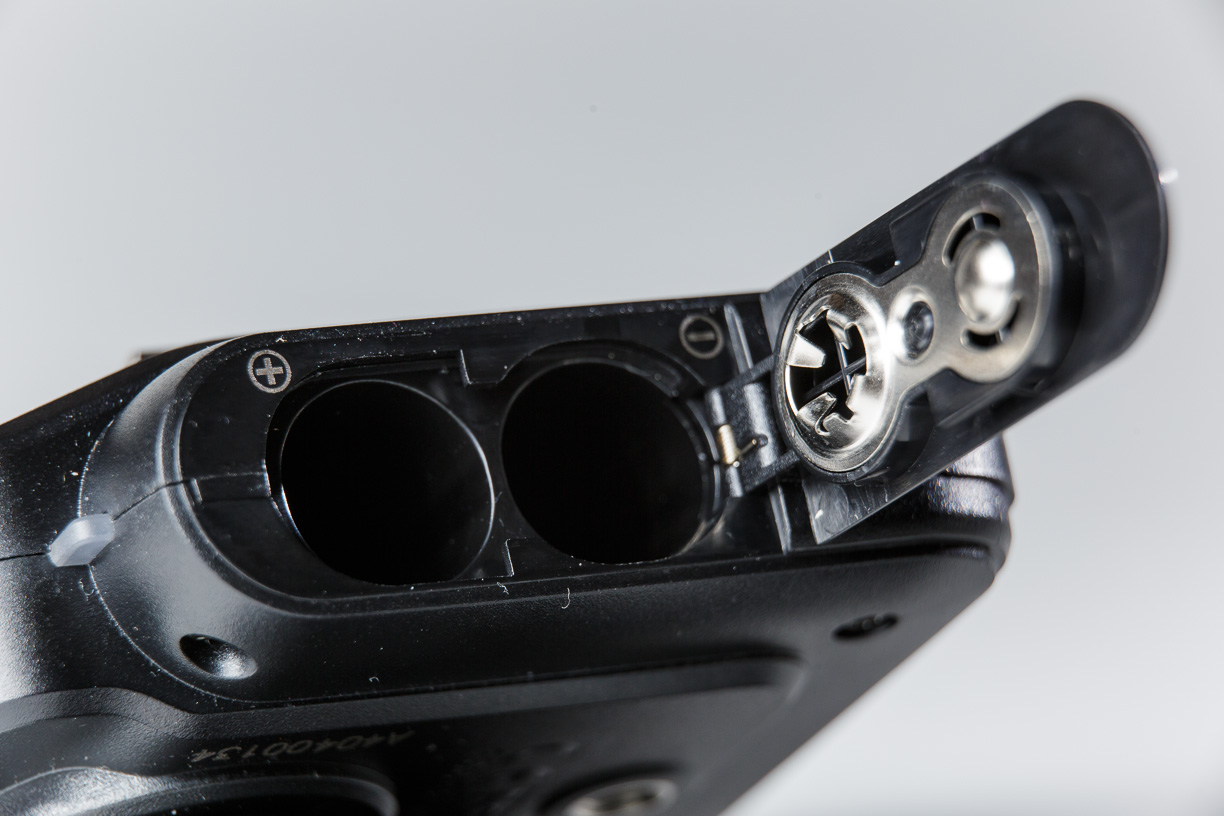

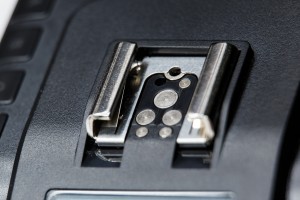

Some views of the V6.

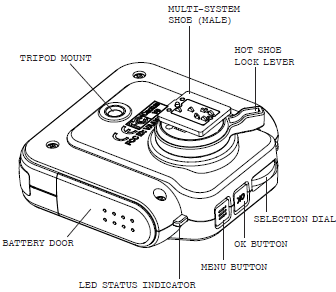

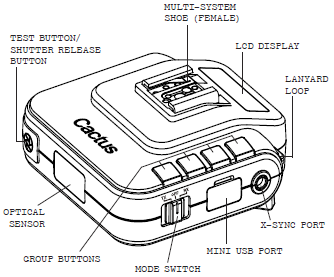

Let’s go over the external controls and features.
The V6 offers quite a few advanced features, from delayed triggering to custom flash profile creation. Since most of the time you’ll “just” be using them to trigger flashes and remotely set their power levels, let’s start there.
This is a really straightforward process, even with the V6 straight out of the box:

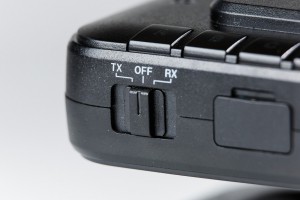

- Put a V6 on camera hot shoe, turn mode switch to TX.
- Put a V6 on each flash and turn mode switch to RX. Via the menu, select the correct flash profile for the flash on each RX. Make sure the TX and all RXs are set to the same channel and select the appropriate group (A, B, C or D) for each flash.
- On the TX, set the desired power output for each group, by press-and-holding the group button and turning the selection dial. Power settings can also be adjusted for all groups simultaneously by using the dial without pressing a group button. Adjustments are in 1/1, 1/2, 1/3, or 1/10 stop steps.
- Take photo.
- Check the results and repeat steps 3 and 4 as necessary. Need to single out a group and see how it lights/affects your scene? Just turn of all other groups and take a photo.
It’s that easy. And like with the V5s, I’ve never had a flash misfire. I did forget to set the correct flash profile a few times at first, which can mean that a flash does not fire with the correct output (or at all). But that’s easy to detect and easy to fix. I’ve tried all kinds of combinations of bodies and flashes – Canon 5D mkII/mkIII, Nikon D600/D700, with all my own flashes and several other Nikon flashes (SB-700, SB-800, SB-900). It just works. The only flash I’ve tried that wouldn’t play along was a Sigma EF-500 DG Super for Sigma’s TTL system. Cactus say the Sigma TTL system isn’t supported yet, but may be if there is enough demand. More on compatibility later.

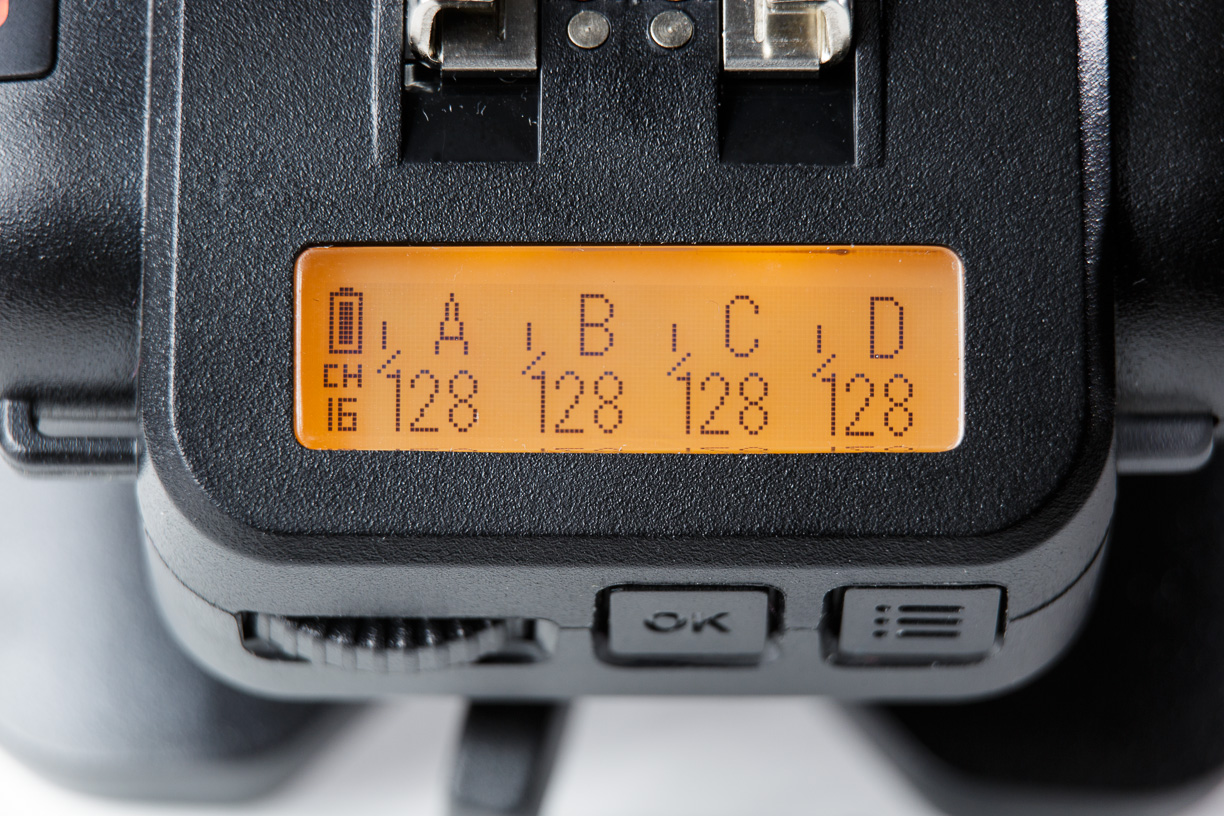

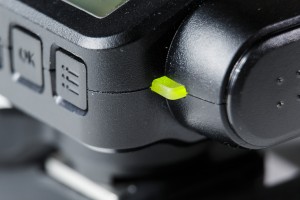

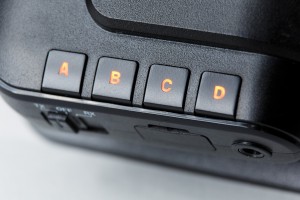

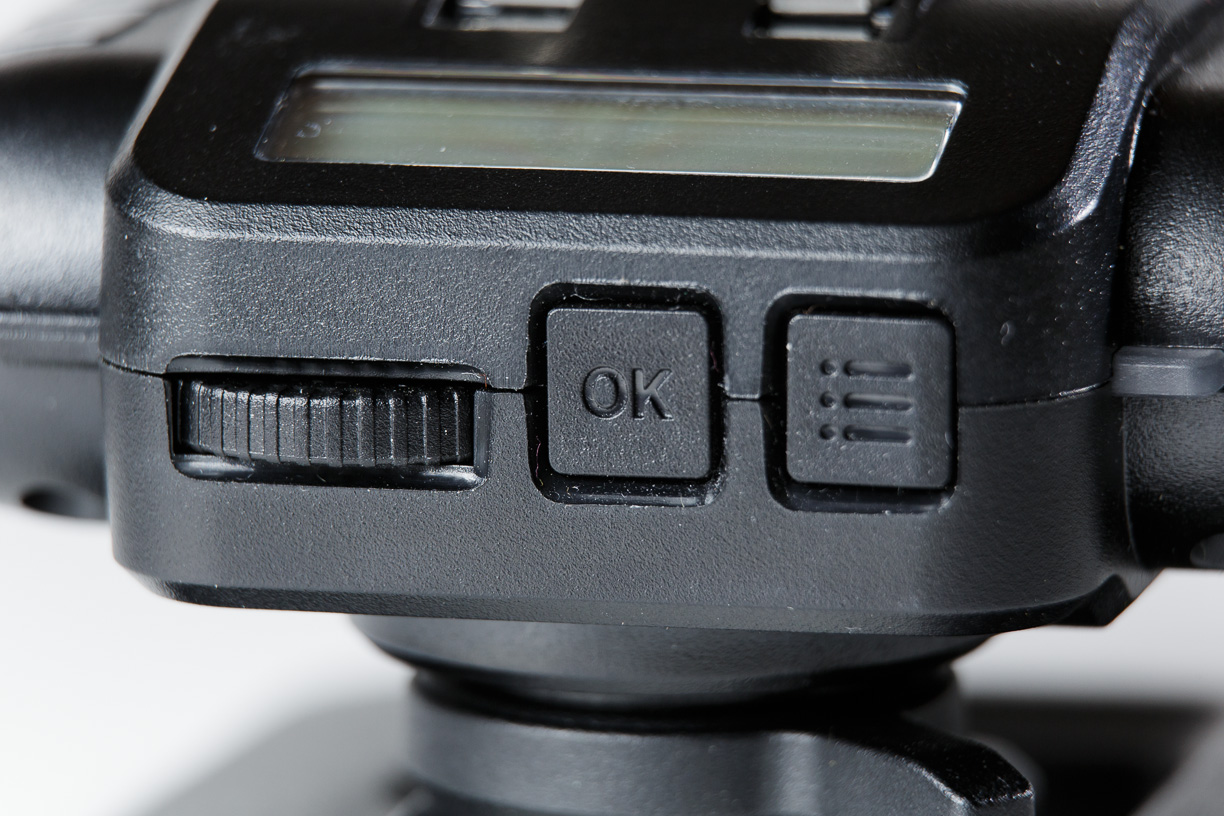

The control buttons on the V6 are well laid-out. The group buttons, the controls below the LCD screen and the test button are all easily reachable with one’s left hand, which is convenient when holding the camera in one’s right hand. The menu is easily navigable given the size of the LCD screen.
A nice addition is what Cactus call the “Quick power adjustment mode”. By pressing the OK button (or pushing the dial) the adjustment step size can be toggled between 1/1 and 1/3 (or 1/2 or 1/10). This allows one to quickly dial in approximate power levels and then fine-tune them.
Here’s a short video to show how to operate the remote power control. Be sure to watch it in HD and full-screen so you can see what happens on the LCD screens. Note how each receiver blinks its status LED when it receives updated settings (group on/off, power level) and how the status LEDs turn orange for half-presses and green for full-presses of the test button. I set the transmitter to Absolute power mode at about 0:58 — more on that later on.
While a number of other flash systems allow one to remotely set power levels (Nikon CLS, TTL, PocketWizard), the beauty of Cactus’ system is that it’s (in essence) brand-agnostic – one can set power levels for flashes of different brands at the same time. It doesn’t matter whether one flash is a Canon 580EXII, the other is a Nikon SB-800, yet another is a YongNuo-for-Pentax or even some ancient model (like my Canon 540EZ) for a now-disused analogue TTL system. The V6 can trigger and control them.
For triggering, the V6 is compatible with “practically all cameras that come with either (1) a standard ISO hot shoe, or (2) a female sync port connection”. However, not all flash systems are supported for remote power control. Sony/Minolta and Panasonic are currently not supported by the V6, as are some third party flash models. The how-and-why of this is a bit technical, but Cactus are working on supporting more flash models and systems in the foreseeable future. (Sony cannot be supported, because their hot shoe is incompatible with the V6’s multi-system hot shoe.) The V6 comes with predefined profiles for quite a few flashes (see the list on Cactus’ website) and new flash profiles will be released through firmware updates.
Moreover, it’s possible to create your own flash profiles, through the built-in learning program. Even though there (currently) is no predefined profile for the Canon 430EZ, I have created my own flash profile for it. (More on profile learning later.) Surprisingly, the V6 can set the 430EZ’s power all the way down to 1/128 in 1/10 stop steps, even though the manual controls on the 430EZ only go down to 1/32, in full stop steps!
Cactus have recently released a flash with a built-in V6 transceiver, the RF60. This manual flash is fully compatible with the V6 and can act as both a master and a slave unit with the V6. The V6 can adjust the RF60’s zoom level remotely. The V6 is backwards compatible with the V5 and with Cactus’ laser trigger LV5, but not their older triggers (V4 and V2).
Here’s a tip on using the V6 with the V5. The V5 doesn’t support groups, which means any V5 receiver set to a specific channel will respond to trigger commands sent by a V6 transmitter, regardless of the active groups on the transmitter. However any V5 receivers set to channel 2, 3, 4 or 5 are triggered by a transmitter set to channel 1 (both V5 or V6). By setting all your V6s (transmitter and receivers) to channel 1, and your different V5 receivers to channels 2 trough 5, you can single out each group of V5s by setting the transmitter to the corresponding channel, since this will only trigger the receivers set to that channel. When you set the transmitter back to channel 1, all V5 receivers (and all V6 receivers in an active group) will fire.

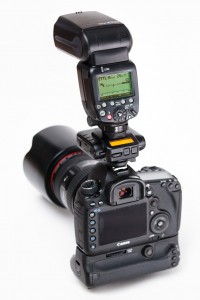

The V6 does not support wireless TTL (i.e. TTL via radio). It does however support TTL pass-through. This means that a V6 attached to a camera hot shoe will transparently pass through TTL commands between the camera and a flash connected to the hot shoe of the V6. Just press-and-hold the menu button for two seconds and you’re good to go. Any V6 can pass through TLL commands for Canon, Nikon, Pentax, Panasonic, Olympus and FujiFilm TTL systems (unlike e.g. the Phottix Strato II, which has different versions for Canon and Nikon).
The TTL pass-through mode lets the V6 integrate seamlessly with my Canon gear, while adding the ability to simultaneously control and trigger additional flashes, even if those don’t support E-TTL. Wireless TTL would have been a nice feature to have for when I’m working outside with a single TTL flash in a softbox (e.g. an Apollo Orb) in sunny weather, where regular TTL can be quite unpredictable. However, I mostly use my flashes for multi-flash studio/strobist setups, where I prefer manual flash anyway. In those setups the V6 saves at lot of walking around adjusting flashes, which keeps the flow of a model shoot going.
With an (optional) shutter release cable, the V6 can be used to trigger the camera. This requires two V6 transceivers:
Connect the X-sync port of one V6 to the camera’s shutter release port, and set that V6 to RX mode.
- Set the other V6 to TX, check the channel and group, and you’re done.
Half-press the test button on the TX to focus, full-press to release the shutter. Bulb mode is also supported. The TX can also be used to trigger any flashes, but this may result in the flashes firing before the camera shutter is released. One could put a V6 on the camera hot shoe to trigger remote flashes, but that would require another V6. To circumvent this, the V6 offers what Cactus call a “Relay mode”.

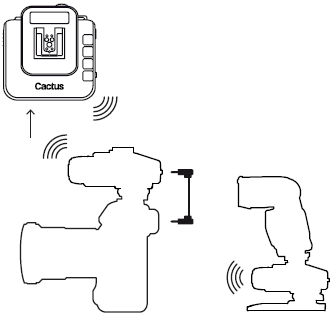

In Relay mode, the V6 used to trigger the camera is used to also trigger the flashes. For this one connects the V6 RX used to trigger the shutter not only to the camera shutter release, but also to the camera hot shoe. The process then is this:
- The V6 TX (let’s call it the handheld V6) triggers the V6 RX on the camera (the on-camera V6)
- The on-camera V6 triggers the camera through the shutter release cable.
- The camera releases its shutter and triggers the on-camera V6 through the hot shoe.
- The on-camera V6 triggers the flashes.
What’s really nice about this is that one can set the flash power levels from the handheld V6 – including a flash that’s attached to the on-camera V6. TTL passthrough is not available in Relay mode.

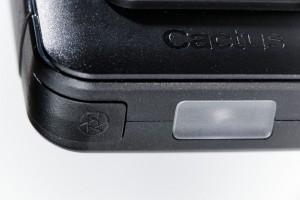

The V6’s built-in light sensor enables it to be used as an optical trigger rather than a radio trigger. It can trigger on the first flash it “sees”, or on the main flash.
The V6 is equipped with a delay timer, which allows the V6 to delay its trigger response in both TX and RX modes. Delays can be set from 1ms 9999ms, by setting the desired amount of milliseconds in the menu. This provides some creative options, for example by having flashes fire in sequence. Or by waiting just a few milliseconds after a water balloon has fallen past an LV5 laser trigger — or hit a piezo sensor, as I used for the photo to the right. In combination with optical triggering it’s also useful when using high-speed sync flash.
The V6 can control most flashes down to 1/128 power. Some flashes (mainly types that use a form of analogue TTL control rather than digital commands) can even be set to an even lower setting, which Cactus call “Lo power”. This setting corresponds to somewhere between 1/128 and 1/256 power, depending on the flash used, and does (surprisingly) produce a flash output noticeably lower than 1/128 on the flashes I’ve tested.
Absolute power mode
The V6 can use the guide number (GN, maximum power output) stored in each flash profile to calculate the absolute power output in EV (exposure value, 1EV is one stop) of each flash in a setup. This enables it to provide an alternate way of setting power levels, called Absolute power mode, as opposed to Relative power mode (the default mode of operation).
In Relative power mode, group power levels are set to relative values such as 1/128, 1/32 etc. When a group is set to (say) 1/32, all flashes in that group fire at 1/32 of their full output, regardless of GN. So flashes with different GNs will produce different amounts of light.
In Absolute power mode, group power levels are set in EV such as 11EV or 16EV (or even 12.1EV). When a group is set to (say) 11EV, all flashes in that group will fire at a power setting that will produce 11EV of light. So each flash in a group produces the same amount of light. This is achieved by letting flashes with different GNs fire at different relative powers.
The benefit of this is abstraction from the flashes that are used; it doesn’t matter if a certain light source is a GN 43 or a GN 56 flash, as long as it is able to produce (say) 12EV of light. So for someone like me, with lots of different flashes, absolute power mode can make life easier, once you get used to thinking in EV rather than fractions. The system even allows one to make temporary or permanent adjustments to flash profiles (both custom and predefined) to accommodate for aging flash tubes, lighting modifiers etc. Pretty sophisticated.
Creating flash profiles
For flashes that support Analogue TTL, the V6 can create custom flash profiles. Put the flash onto a V6’s hot shoe, point it at a matte white surface (a wall or a bed-sheet should do), start the built-in learning program and follow the instructions on the V6 LCD. The V6 wil perform a quick test to see if the flash can be controlled, and then ask to manually set the flash to 1/2 power, 1/4 power etc., firing a few test flashes at each power setting. Once the V6 is done learning and calibrating, the custom profile can be stored and named and then copied to other V6s.
This process worked really well for the flashes I’ve tried, which were mostly flashes for which profiles already existed. Any profile I created worked just as well as the predefined profiles for the same flash. I didn’t perform any quantitative test, but when switching back and forth between my own and the predefined profiles, I didn’t notice any significant differences in power output.
When learning profiles, make sure to put fully charged batteries in the flash though, because otherwise the flash may take too long to recycle between test firings and the learning program will time-out, especially at 1/2 power.
During firmware updates,
custom profiles are erased from the V6, so be sure to copy your profiles to V6s you’ve updated before updating the last V6. Update: As of firmware version 1.0.152, custom flash profiles are preserved during firmware updates.
Updating the V6’s firmware is quite easy. Download Cactus’ firmware updater software from their website and start it. Remove the batteries from the V6 and connect it to your Windows computer with a mini USB cable (not supplied), and switch it on while pressing the menu + test buttons. The updater will show to which firmware version it will upgrade the unit (you can have it check for new versions online). Press the update button and wait until the program says the V6 can be disconnected.
Class A’s review on pentaxforums.com provides some interesting measurements on power levels. He states that power output with his 540EZ flash are within 0.15EV of the set value throughout the flash’s entire range (1/128 through 1/1) with the predefined profile, and within 0.2EV for all but the extreme power settings with his custom profile for that flash. That’s about as accurate as manually setting power levels. Quite impressive, especially with such an old flash gun.
The maximum operating distance of the V6 is quoted by Cactus as 100m, but I’ve done a quick test and had no problems controlling a V6 at nearly 200m. (And other beta testers have reported even longer distances.) For situations where the receivers are very close to the transmitter (i.e. closer than about 20cm, for macro shots and the like) the V6 offers a short range mode that can be set via the menu (firmware versions 1.0.152 and up).
All in all I’m really impressed with the V6. It’s a solid performer that works seamlessly with a wide range of camera bodies, flashes and triggers — most importantly my own gear. Remote power control is straightforward and reliable. Triggering is rock-solid; I haven’t had a single misfire during weeks of use. The fact that the V6 is a transceiver and thus any V6 can be used as either a transmitter or a receiver (as opposed to for instance the Phottix Strato II system that has separate transmitters and receivers) adds real flexibility to the system. Additional features like TTL pass-through, relay mode and delay make the system even more versatile. And for Cactus V5 owners, the fact that the V6 is fully backwards compatible with the V5 is a nice extra.
At this price point (
just shy of $55 from Gadget Infinity at the time of writing update 07/2015: $70 from their newly-launched store), I can’t think of any system that offers this level of remote power control. There are some systems that offer wireless TTL, but those are all brand specific, and most are at least twice as expensive.
Pros & cons
- Reliable triggering, even over long distances
- Remote manual power control, with four groups
- Brand-agnostic; controls many brands and types of flashes at the same time
- Profile learning; create custom profiles for ‘unsupported’ flashes
- Competitively priced
- Transceiver: any unit can be the master, which adds flexibility
- Intuitive interface (although you should read the manual to unlock all features)
- Good build quality
- TTL pass-through, Relay mode, Absolute power mode, delay timer, remote zoom control
- Firmware upgradeable
- The RF60 is a very good, fully compatible manual flash
- Backwards compatible with V5 and LV5
- Fixes nearly all ‘flaws’ of the V5 (locking wheel, channel setting, power save)
- Units are a bit large in the camera bag
- Mounting thread may be a bit close to hot shoe
- No sync / shutter release cables included (but you probably already own those)
- No wireless TTL, only TTL pass-through on transmitter
As said, I’m impressed. The V6 is reliable, easy to use, and very versatile – the pros and cons speak for themselves. If you’re looking for brand-specific TTL, look elsewhere. If you’re looking for a wireless flash system that offers accurate, reliable remote control over a wide range of flashes from many brands and eras (even the film era), the V6 should definitely be somewhere at the top of your list.
